JW Tie-Rod Hydraulic Cylinders for CNC Bending Machines

Date:
2016/07/09

Order detail:

Design drawings：

Delivery situation:

About the project:

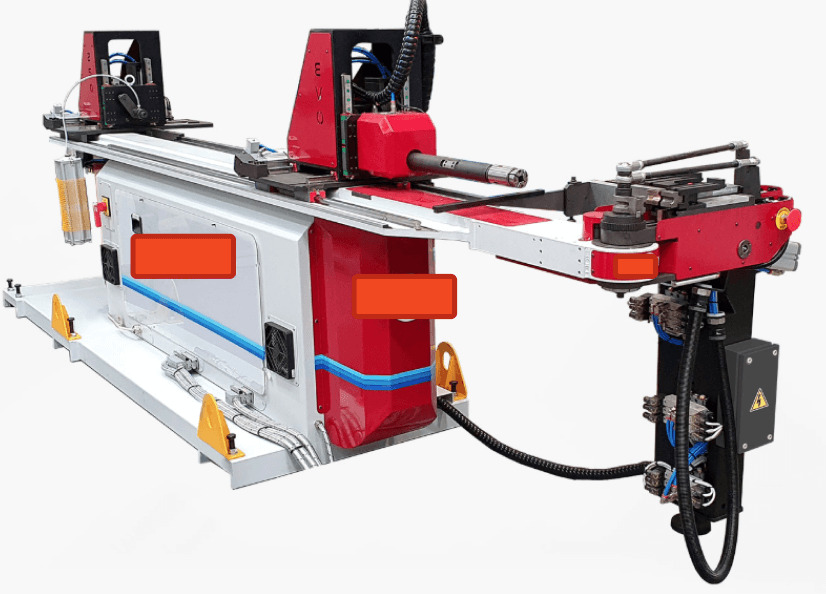

These hydraulic cylinders are specially designed for CNC tube-bending machines. Built with a heavy-duty tie-rod construction, they ensure exceptional stability and durability even under high pressure and continuous operation. The cylinder barrels are precision-honed and anti-corrosion coated, while high-quality sealing systems prevent oil leakage and extend service life.

Within the CNC tube bending system, these cylinders perform several critical functions:

Clamping Cylinder – firmly holds the tube in position to prevent slippage during bending.
Pressure Die Cylinder – applies controlled pressure to the tube to maintain roundness and ensure accurate forming.
Mandrel Extractor Cylinder – smoothly retracts the mandrel after bending, avoiding surface damage to the finished part.
(Optional) Booster Cylinder – provides forward feeding force to assist mandrel movement and improve bending precision.

This integrated hydraulic solution guarantees precise, stable, and repeatable bending performance, meeting the demanding requirements of modern CNC tube forming equipment.
